Product material:

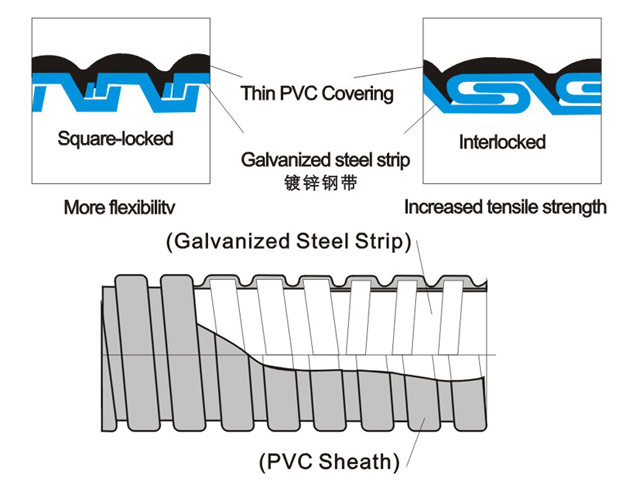

(inner layer) adopting galvanized steel band with special insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging) Color: Black and gray

Certification acquired:

European Environmental Protection Certification

Working temperature:

-10℃ ~ ＋80℃

Property:

1. The flexible pipes have extremely good waterproof, insulating and pull resistance.

2. The surface is made of PVC material, which is added with fire retarding agent.

3.The structure is buckle structure, which enhances the pull resistance and is not liable to crack or deform.

4.Good bending performance. The inner smoothnessmakes the entry of wires very easy.

Application:

Used for wire protection at railways, engines, traffic system engineering, air-conditioners, various machineries, automatic controlling equipment, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.

Usage:

protecting wires/cables and provide insulation, waterproofing as well as beautiful outlook of the wiring.

Usage:

protecting wires/cables and provide insulation and waterproofing performance.

How to use:

Put the wires/cables through the pipes before fitting correspondent type of LNE-DPJ joints.

Item No.

Specifications

Outer diameter

Natural curve

Max.

Pack.

unit

and tolerance

axial pull

Metric

G system

(mm)

(mm)

(Kg)

(m)

WH00862-6

Φ 6

3/16"

9.00 ± 0.25

40

335

200

WH00862-8

Φ 8

1/4"

11.8 ± 0.30

45

470

100

WH00862-10

Φ 10

5/16"

14.5 ± 0.30

55

590

100

WH00862-12

Φ 12

-

16.5 ± 0.35

60

710

100

WH00862-13

Φ 13

3/8"

17.5 ± 0.35

65

765

100

WH00862-15

Φ 15

-

20.2 ± 0.35

80

885

100

WH00862-16

Φ 16

1/2"

21.2 ± 0.35

85

940

100

WH00862-19

Φ 19

-

24.5 ± 0.40

95

1120

50

WH00862-20

Φ 20

3/4"

25.5 ± 0.40

100

1180

50

WH00862-25

Φ 25

1"

31.7 ± 0.45

120

1450

50

WH00862-32

Φ 32

1 1/4"

39.6 ± 0.50

150

1885

25

WH00862-38

Φ 38

1 1/2"

46.6 ± 0.60

180

2240

25

WH00862-51

Φ 51

2"

59.5 ± 1.00

220

3000

20

WH00862-64

Φ 64

2 1/2"

73.5 ± 1.50

310

3770

10

WH00862-75

Φ 75

3"

84.5 ± 2.00

350

4400

10

WH00862-100

Φ 100

4"

109.0 ± 3.0

410

4700

10
