Product material:

(inner layer) adopting galvanized steel band with special insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging)

Working temperature:

-10℃ ~ ＋80℃

Structure:

1. The flexible pipes have extremely good waterproof, insulating and pull resistance.

2. The thickened surface is made of PVC. The surface is smooth. The PVC plastic is added with fire retarding agent.

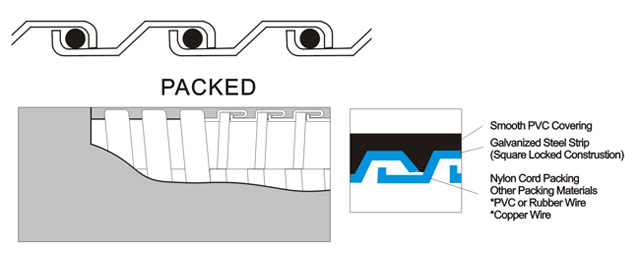

3.The structure is buckle structure, which enhances the pull resistance and is not liable to crack or deform.<

Application:

Used forwire protection at railways, engines, trafficsystem engineering, air-conditioners, various machineries, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.

Usage:

protecting wires/cables and provide insulation and waterproofing performance.

How to use:

Put the wires/cables through the pipes before fitting correspondent type of WH01 joints.

Item No.

Specifications

Outer diameter

Natural curve

Max.

Packaging unit

and tolerance

axial pull

Metric

G system

(mm)

(mm)

(Kg)

(m)

WH00861-10

Φ 10

5/16"

14.5 ± 0.30

55

590

100

WH00861-12

Φ 12

-

16.5 ±0 .35

60

710

50

WH00861-13

Φ 13

3/8"

17.5 ± 0.35

65

765

50

WH00861-15

Φ 15

-

20.2 ± 0.35

80

885

50

WH00861-16

Φ 16

1/2"

21.2 ± 0.35

85

940

50

WH00861-19

Φ 19

-

24.5 ± 0.40

95

1120

50

WH00861-20

Φ 20

3/4"

25.5 ± 0.40

100

1180

50

WH00861-25

Φ 25

1"

31.7 ± 0.45

120

1450

50

WH00861-32

Φ 32

1 1/4"

39.6 ± 0.50

150

1885

20

WH00861-38

Φ 38

1 1/2"

46.6 ± 0.60

180

2240

20

WH00861-51

Φ 51

2"

59.5 ± 1.00

220

3000

20

WH00861-64

Φ 64

2 1/2"

73.0 ± 1.50

310

10

WH00861-75

Φ 75

3"

88.9 ± 2.00

350

10

WH00861-100

Φ 100

4"

114.3 ± 3.00

410

5
